Product information "Trilux twenty3 LED surface-mounted luminaire 2350 G3 D2 PW19 40/30/ML-840 ET - 7755740"
Luminaire type
Surface mounted LED luminaire with translucent PMMA cover glass.
Application areas

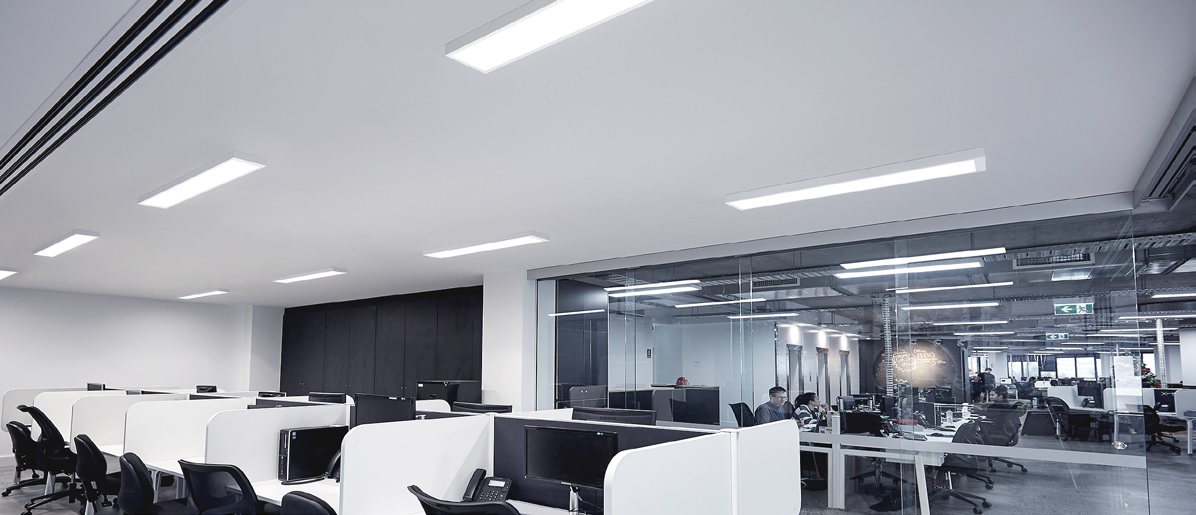

Offices, corridors, foyers, conference rooms, sales areas, waiting areas, education, nursing homes.
Mounting types
For ceiling mounting in interior spaces.
Optical system

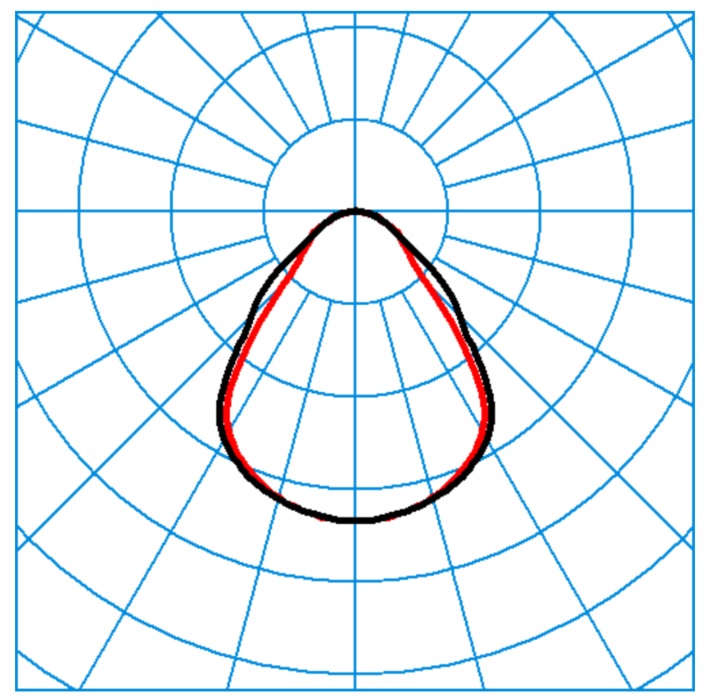

Cover made of translucent PMMA with photometrically effective prismatic structure. With symmetrical deep-wide distribution of luminous intensity. Glare rating according to UGR classification (EN 12464-1) < 19.
LED system
Luminaire with adjustable rated luminous flux 4000 lm - 3000 lm. Rated power depending on the adjusted luminous flux 36.00 W / 30.00 W. Power factor λ > 0.95, luminaire luminous efficacy 111 lm/W. Light color , most similar color temperature (CCT) , color location tolerance (initial MacAdam) ≤ 5 SDCM, general color rendering index (CRI) R a > 80. Average rated life L65(t q 25 °C) = 50,000 h.
Luminaire body
Luminaire body made of aluminum. Surface coated white (RAL 9016). Dimensions (L x W): 1225 mm x 325 mm, luminaire height 46 mm. Weight: 3.4 kg.
Electrical design
The product complies with the essential requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
Downloads & Documents
Login
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| conformity: | CE, ENEC |
| lifetime: | 50000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| protection type: | IP20 |
| material: | aluminum |
| mounting: | surface mounting |
| impact resist: | IK02 |
| protection class: | I |
| environment temperature to: | 25 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
Logistic data
| item category: | LED ceiling luminaires |
|---|---|
| country of origin: | China |
Dimensions & packaging
| EAN | 4018242589234 |
|---|---|
| Length | 1277 mm |
| Width | 1277 mm |
| Height | 52 mm |
| Weight | 3400 g |
