Trilux twenty3 LED weather-proof luminaire IP 66 2310 12 B 40-840 ET - 7922840
Trilux twenty3 LED weather-proof luminaire IP 66 2310 12 B 40-840 ET - 7922840
Immediately available
€49.36
Prices incl. VAT plus shipping costs net €41.48
Product information "Trilux twenty3 LED weather-proof luminaire IP 66 2310 12 B 40-840 ET - 7922840"
Luminaire type
LED weather-proof surface-mounted luminaire IP66.
Applications
Ceiling and wall luminaires for damp environments and covered exterior areas. Advantageous with applications requiring increased mechanical
stability. Compliant to DIN 10500. Luminaire with limited surface temperature in accordance with DIN EN 60598-2-24, suitable for use in work
locations exposed to fire hazards.
Mounting methods
With clipless catch technology for protection rating-compliant and simple assembly of diffuser cover and luminaire body after electrical connection. For ceiling, wall and suspended mounting. Ceiling mounting with stainless steel fixing clips (included). Suspended mounting possible via optional accessories.
Optical system

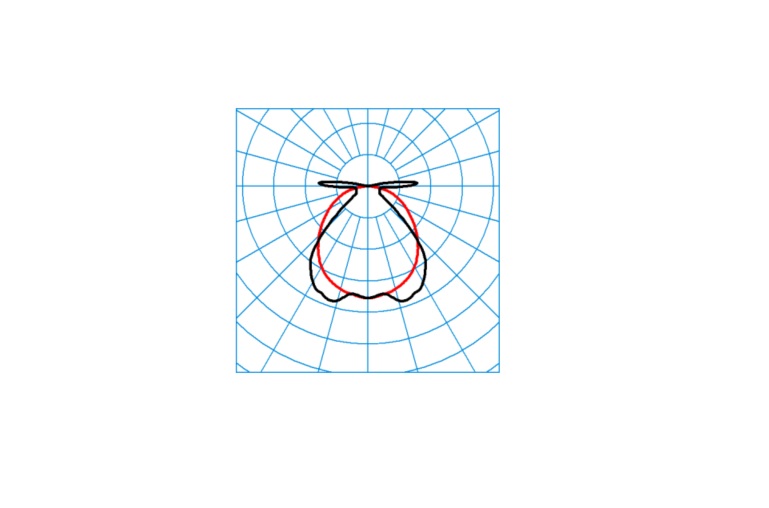

PMMA diffuser with inner prism structure. With symmetric wide light intensity distribution.
LED system
Luminaire luminous flux 4000 lm, connected load 33,00 W, Power Faktor λ > 0,95, luminous efficiency of luminaire 121 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, Colour locus tolerance (initial MacAdam) ≤ 4 SDCM, general colour rendering index (CRI) R a > 80.
Luminaire body
Luminaire body of PC. (RAL 9016). With clipless catch technology for protection rating-compliant and simple assembly of diffuser cover and

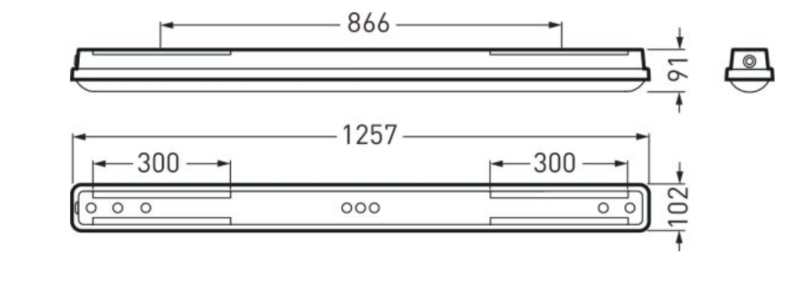

luminaire body after electrical connection. Dimensions (L x W): 1257 mm x 102 mm, luminaire height 91 mm. Weight: 2,3 kg.
Electrical connection
With 3-pole terminal to 2.5 mm².
Electrical version
With electronic transformer, switchable. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
Downloads & Documents
Login
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| conformity: | CE, ENEC |
| system power: | 33 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | yes |
| form type: | linear |
| protection type: | IP66 |
| material: | polycarbonate |
| mounting: | surface mounting |
| impact resist: | IK03 |
| protection class: | I |
| environment temperature from: | -20 °C |
| environment temperature to: | 25 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 121 lm/W |
| inclusive lamp: | yes |
| lum flux: | 4000 lm |
Logistic data
| item category: | waterproof luminaires |
|---|---|
| country of origin: | China |
Dimensions & packaging
| EAN | 4018242645770 |
|---|---|
| Length | 1273 mm |
| Width | 1273 mm |
| Height | 109 mm |
| Weight | 2300 g |
