watt24 Casambi Relais Set - 30133558
Product information "watt24 Casambi Relais Set - 30133558"
The light control for retrofitting - with Bluetooth network and app.
You want your lights from the sofa on and off?And that easily and effectively via app-control?This is exactly what our CASAMBI set is intended to relay.
By finder relay increase the switching capacity to at max. 3000Watt *.
No special programming or complicated wireless means necessary.
And how it works.
Install the free CASAMBI App (iOS, Android).
The app recognizes all connected modules CASAMBI near.
Select the desired light and turn on the app:
The relay can also be found in live action on our YouTube video - the scene with the radio (Time: 11:22):

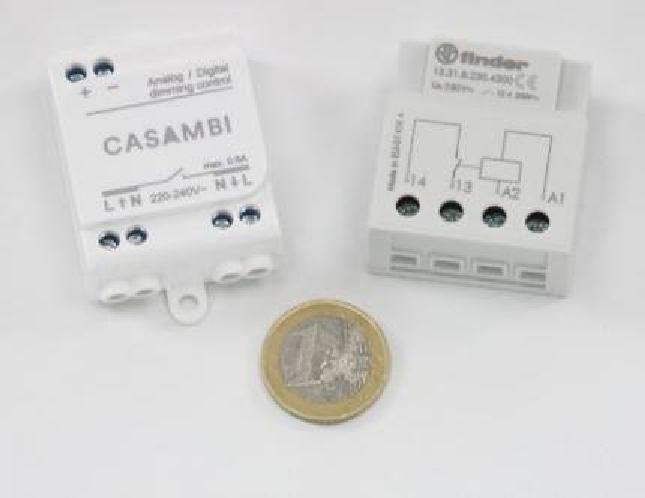

Casambi unit:

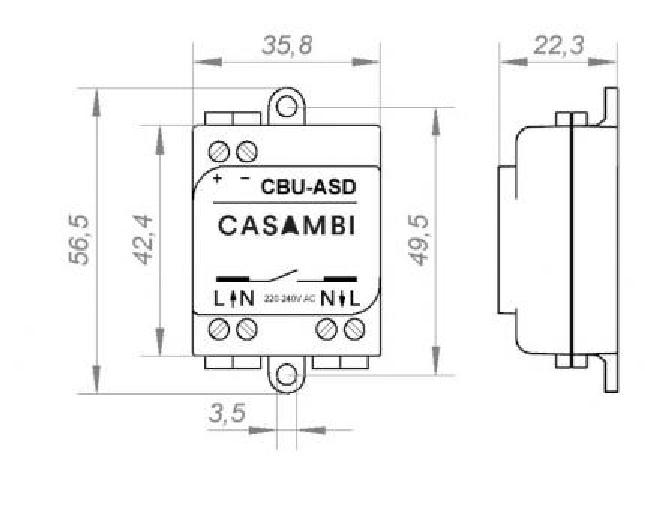

CBU ASD controller for LED driver for wireless control via smartphone or tablet. Small housing with a height of 22.3mm and a total length of 56.5mm, in lights can be installed. The module is equipped with a configurable interfaces for connecting dimmable electronic ballasts. Retrieving lighting scenes and setting the power-on light levels using the power switch
.
ELTAKO relay:

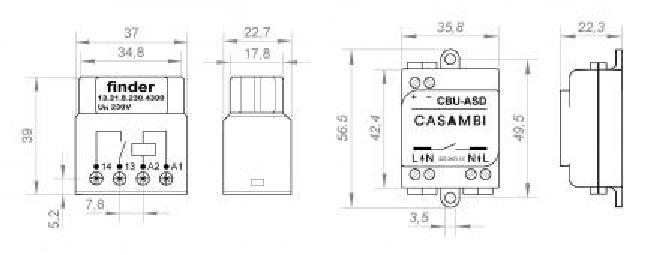

finder 13.31.8.230.4300 230 V relay for installation in a deep flush-mounted socket 1-pole, max. Switching line 3000W, 10A / 250V AC. Height 37mm, length 39mm.
Additional technical data:
- max. 7 mA control current
- Switching power: max. 3000W *
- Bluetooth 4.0 Mesh Network
On request as DALI Broadcast, DALI RGB or DALI WW Set Available:
Downloads & Documents
Login
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| max housing temperature (tc-max): | 70 °C |
| protection type: | IP20 |
| mounting: | surface mounting |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 70 °C |
Photometric data
| dimmable: | yes |
|---|---|
| color: | white |
| interface: | Casambi |
Logistic data
| item category: | light management |
|---|
