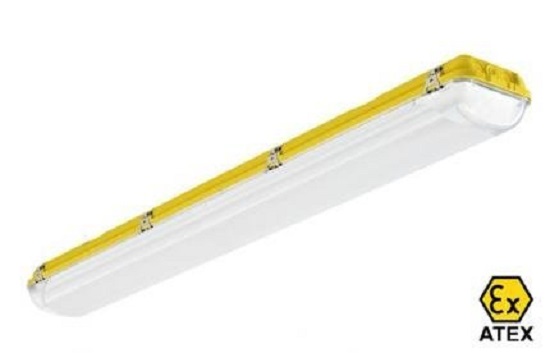

Zalux EX-Luminaire Zone 2, 22 T5 Acquex 1x49W IP66 - 10107929
No longer available
For an alternative please contact us!
Accessories
Immediately available
€69.41
Prices incl. VAT plus shipping costs net €58.33
Accessories
Immediately available
Product information "Zalux EX-Luminaire Zone 2, 22 T5 Acquex 1x49W IP66 - 10107929"
The EX-lamp T5 "ZALUX Acquex 1x49W" is perfectly suited for use in EX-Zone 2, 22 in accordance with ATEX Directive 94/9 / EC. D.h.in these areas typically occurs no dangerous explosive atmosphere as a mixture of air and flammable gases, only short-term.
Therefore, this light is very well suited for paint shops, petrol stations, deposits of solvents, paints and coatings, where for a sufficient discharge / ventilation is provided (ATEX Directive 94/9 / EC).
The case of the T5-EX luminaire is made of fiberglass reinforced polyester, which against fire, inflammation and corrosion resistant -. The diffuser, however made of impact resistant, transparent polycarbonate (IK08 according to IEC 62262)
This lamp is designed for power saving but robust T5 technology. For your 49W power you get up to 5000 lumens and an energy efficiency class A + with over 100lm / W. The positive overall impression of the EX-lamp is completed by the class II and IP66.
This luminaire is only approved for fluorescent tubes, when using LED bulbs the EX certificate expires!
No illuminants are included, so you can determine the light color yourself!
Suitable illuminant:
Osram T5-fluorescent lamp, HO 49W/865 FLH1
Downloads & Documents
Login
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| lifetime: | 50000 h |
Casing
| ex zone: | 2/22 |
|---|---|
| ballproof: | no |
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP66 |
| material: | plastic |
| impact resist: | IK08 |
| protection class: | I |
| environment temperature from: | -20 °C |
| environment temperature to: | 40 °C |
Photometric data
| sensor: | no |
|---|---|
| color: | yellow |
Logistic data
| item category: | EX-luminaires (ATEX) |
|---|
Dimensions & packaging
| EAN | 8428879016625 |
|---|---|
| Length | 1587 mm |
| Width | 155 mm |
| Height | 75 mm |
| Weight | 3380 g |
