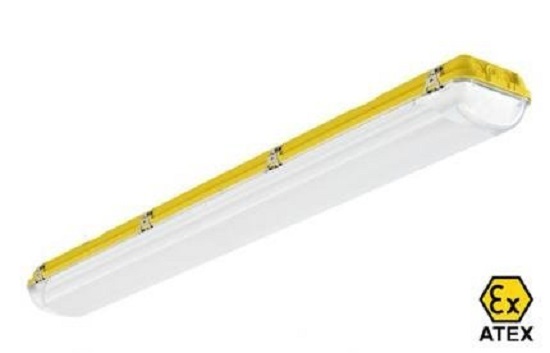

Product information "Zalux EX-Luminaire Zone 2, 22 T5 Acquex 2x49W IP66 - 10107930"
The EX-lamp T5 "ZALUX Acquex 2x49W" is perfectly suited for use in EX-Zone 2, 22 in accordance with ATEX Directive 94/9 / EC, where you need a whole lot of light. That in these areas typically occurs no dangerous explosive atmosphere as a mixture of air and flammable gases, only short-term.
Therefore, this light is very well suited for paint shops, petrol stations, deposits of solvents, paints and coatings, where for a sufficient discharge / ventilation is provided (ATEX Directive 94/9 / EC).
The case of the T5-EX luminaire is made of fiberglass reinforced polyester, which against fire, inflammation and corrosion resistant -. The diffuser, however made of impact resistant, transparent polycarbonate (IK08 according to IEC 62262)
This lamp is designed for power saving but robust T5 technology. From your 2x49W power you get up to 10,000 lumens and an energy efficiency class A + with over 100lm / W.
The positive overall impression of the EX-lamp is completed by the class II and IP66.
This luminaire is only approved for fluorescent tubes, when using LED bulbs the EX certificate expires!
No illuminants are included, so you can determine the light color yourself!
Suitable illuminant:
Downloads & Documents
Login
21 July 2023 09:30
Top Preis-Leistungsverhältnis
Ich habe sie in meiner Lackiererei installiert und sie liefert viel Licht, genau was ich brauchte. Die T5-Technologie spart Strom, und die Energieeffizienz ist top! Die robuste Konstruktion gibt mir das Vertrauen, dass sie lange halten wird. Ich bin rundum zufrieden!
Electrical data
| operating voltage: | 220-240 V |
|---|---|
| rated voltage: | 220-240 V |
| lifetime: | 50000 h |
| system power: | 49 |
Casing
| ex zone: | 2/22 |
|---|---|
| fire protection: | V2 |
| form type: | linear |
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP66 |
| material: | plastic |
| impact resist: | IK10 |
| protection class: | I |
| environment temperature from: | -20 °C |
| environment temperature to: | 40 °C |

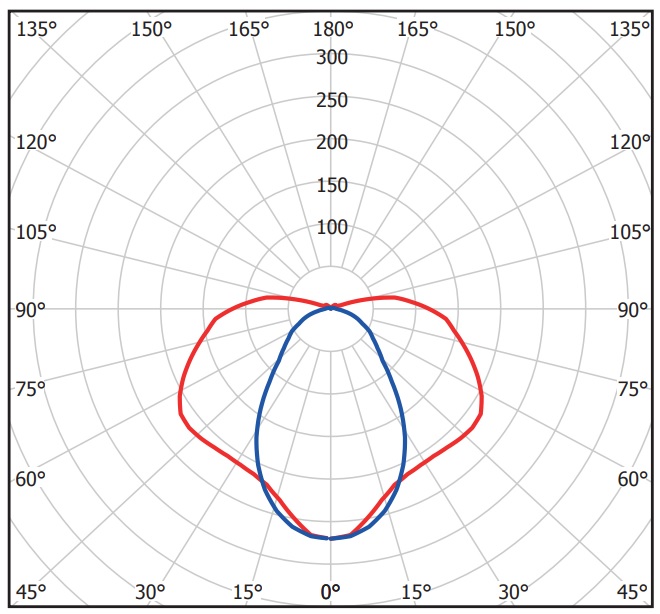

Photometric data
| sensor: | no |
|---|---|
| color: | yellow |
| inclusive lamp: | no |
Logistic data
| item category: | EX-luminaires (ATEX) |
|---|

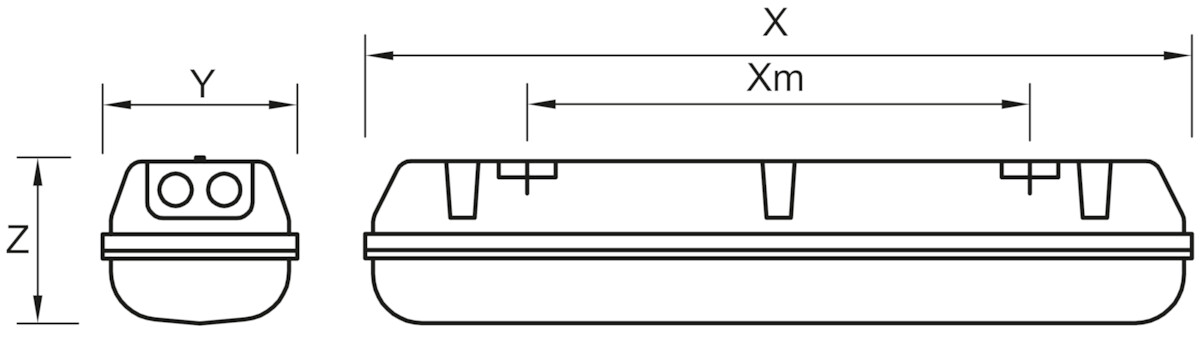

Dimensions & packaging
| EAN | 8428879016694 |
|---|---|
| Length | 1587 mm |
| Width | 155 mm |
| Height | 75 mm |
| Weight | 6 g |
