Zalux LED-EX-Luminaire STRONGEx1 G2 S1 12 PVW 56-840 ET - 10269631
ZALUX, S.A.
Zalux LED-EX-Luminaire STRONGEx1 G2 S1 12 PVW 56-840 ET - 10269631
Product number:
10269631
Shipping in 28 day(s)
€1,142.40
Content:
1 Stück
Prices incl. VAT plus shipping costs net €960.00
Product information "Zalux LED-EX-Luminaire STRONGEx1 G2 S1 12 PVW 56-840 ET - 10269631"
Extreme robustness and resistance against impacts and chemical agents
- Gas tight luminaire, suitable for outdoor applications
- High resistance PMMA profile, suitable for refineries close to the sea with salty environments.
- Integrated emergency kit with up to 3 hours autonomy.
- Wide temperature range to allow its installation in plants all over the world.
Downloads & Documents
Login
Electrical data
| operating frequency: | 50/60 Hz |
|---|---|
| rated voltage: | 220-240 V |
| conformity: | CE |
| lifetime: | 100000 h |
| system power: | 35 |
Casing
| ex zone: | 1/21 |
|---|---|
| fire protection: | V2 |
| form type: | linear |
| protection type: | IP66 |
| material: | PMMA |
| mounting: | ceiling mounting |
| impact resist: | IK10 |
| environment temperature to: | 55 °C |

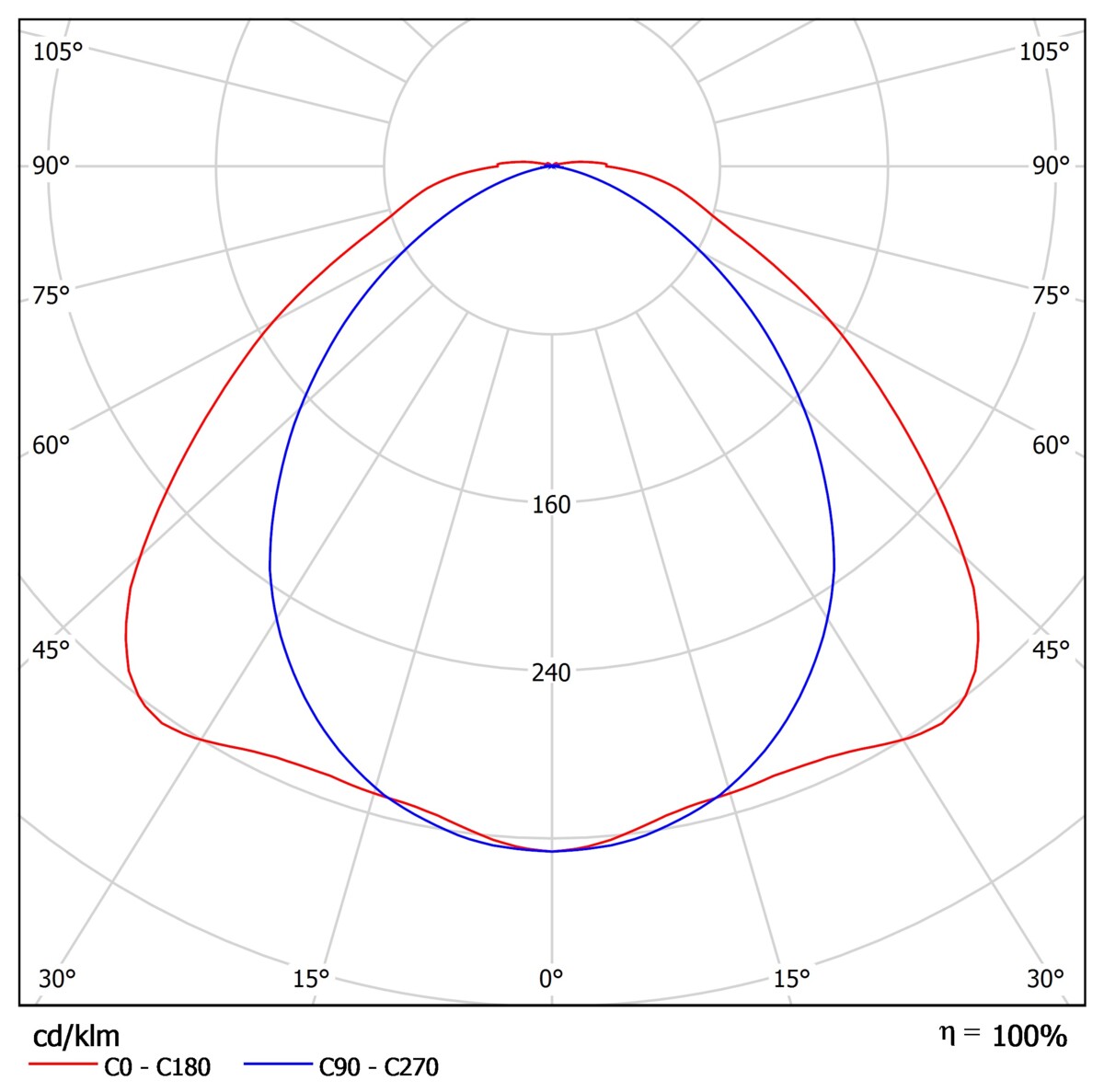

Photometric data
| multi-color: | no |
|---|---|
| multi-lumen: | no |
| sensor: | no |
| dimmable: | no |
| color code: | 840 |
| color: | grey |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 160 lm/W |
| inclusive lamp: | yes |
| solar panel: | no |
| lum flux: | 5600 lm |
Dimensions & packaging
| Length | 435 mm |
|---|---|
| Width | 127 mm |
| Height | 113 mm |
| Weight | 2000 g |
